There is an upgraded version of this product now available, the Boffintronics RC Receiver Recorder II. This page will remain active as a reference.
Using this board in conjunction with the DIY Controller, a routine can be stored on the receiver’s on board SD card. The transmitter can then be turned off, allowing the receiver to now operate independently. You can then utilize a variety of sensors to trigger playback.

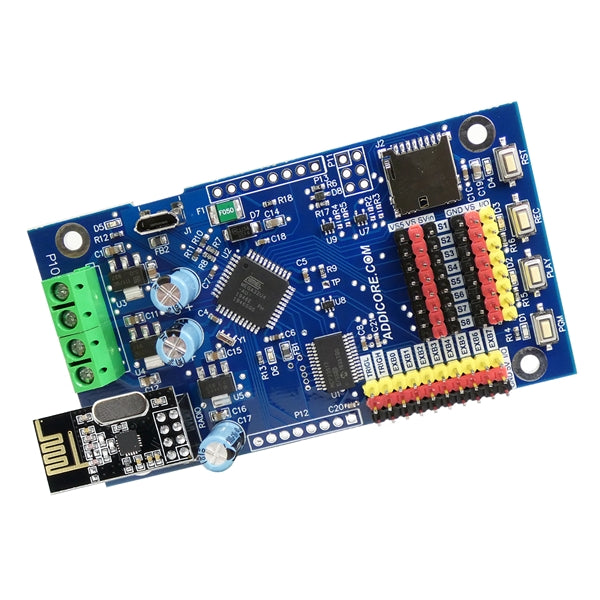

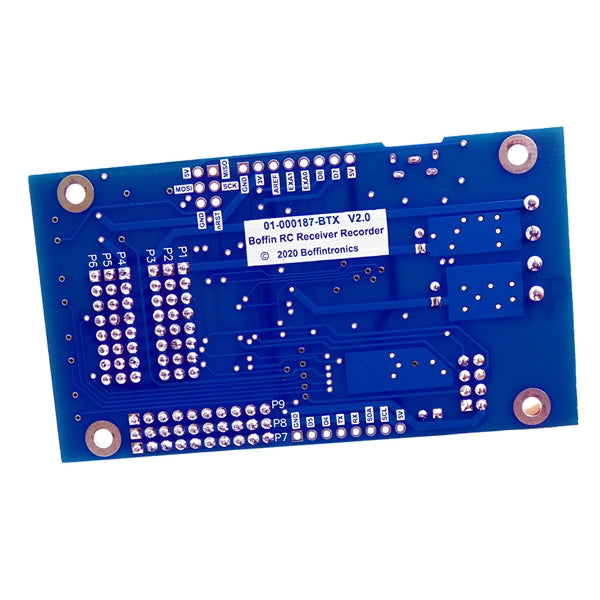

It is based on the ATmega32U4 and is compatible with the Arduino IDE as a Leonardo. The board comes with the current programming version already installed. No need to know how to program as all adjustments to the controllers parameters are done on an easy to access configuration file that is stored on the SD card. You are able to quickly change servo direction, center and end points as well as add re-trigger delays. If you want to write your own code, the board includes an on-board USB Micro connector and USB to serial (UART) converter, making it easy to program the board by simply connecting it to your computer with a USB Micro cable.
Included is a nRF24L01+ 2.4GHz Wireless Transceiver. Additional range is possible with our nRF24L01+PA+LNA with Antenna 2.4GHz Wireless Transceiver
For controlling servos, there are 8 headers (ground, power, and signal) with jumper selectable power. The current programming allows you to use 6 of these servos with new program updates in the works to utilize all 8. In addition to servos, there are 8 digital out headers (ground, 5V, and signal) which can be set either high or low, 1 high trigger input, and 1 low trigger input. Additional signals provided via P11 and P12.
- 1 — Boffintronics RC Receiver Recorder with a 128MB SD Card
|Microcontroller||ATmega32U4 - Compatible as an Arduino Leonardo|
|USB to Serial Converter||Integrated into ATmega32U4|
|SD Card Memory||128MB Card Included|
|Recording Time||Approximately 15 minutes per MB|
|Length||90 mm (3.54")|
|Width||50 mm (1.96")|
|Height||18.5 mm (0.72")|
- Boffintronics RC Receiver Recorder Product Support Forum
- Boffintronics RC Receiver Recorder Setup Guide
- Boffintronics RC Receiver Recorder Hookup Diagram
- Boffintronics RC Receiver Recorder Schematic
- Boffintronics RC Receiver Recorder Github (This software comes pre loaded in the board) Current Code Version 3.1 - Released 8/25/2021
