Addicore  |  SKU: AD589 UPDuino v3.0

Shipping calculated at checkout.

AD589 Options


Ships Same Day if Ordered Before Noon Pacific Time

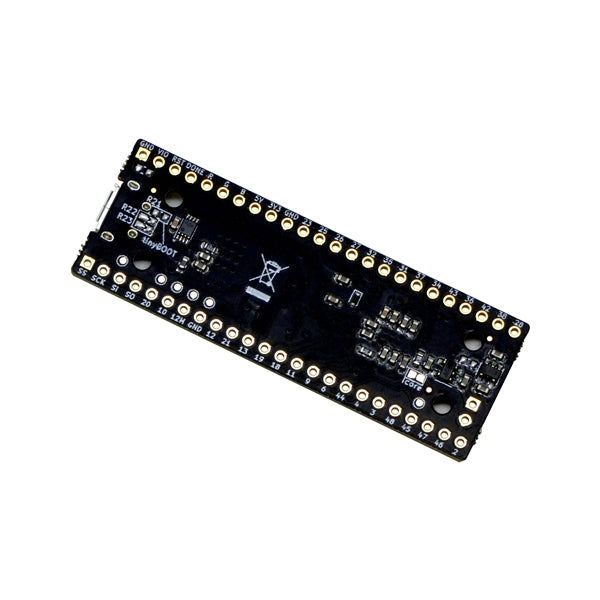

The UPDuino v3.0 is a small, low cost FPGA board. The board features an on-board FPGA programmer, flash and LED with all FPGA pins brought out to easy to use 0.1" header pins for fast prototyping.

Please Note: This board is not compatible with the Arduino IDE. Please see the Tool Installation Page for installation instructions.
Product Contents:

  • 1 — UPDuino v3.0
  • 2 — 24 pin straight male header pins

  • Lattice UltraPlus ICE40UP5K FPGA with 5.3K LUTs, 1Mb SPRAM, 120Kb DPRAM, 8 Multipliers
  • FTDI FT232H USB to SPI Device
  • ALL 32 FPGA GPIO on 0.1” headers
  • 4MB SPI Flash
  • On board 3.3V and 1.2V Regulators, can supply 3.3V to your project
  • Open source schematic and layout using KiCAD design tools
  • Integrated into the open source APIO toolchain
  • 4 layer board with a solid ground plane, proper layout and decoupling for good signal integrity and FPGA operation
  • Access to on-board 12MHz oscillator using a jumper
  • All FPGA pins including LED driver pins are brought to 0.1" headers
  • qSPI Flash capable
  • tinyFPGA bootloader compatible
