Addicore | SKU:
AD585
HiTec HS-425BB Deluxe Ball Bearing Standard Servo
$17.87
Unit price /
Unavailable
Shipping calculated at checkout.
HiTec HS-425BB Deluxe Ball Bearing Standard Servo is backordered and will ship as soon as it is back in stock.
Delivery
Delivery
Ships Same Day if Ordered Before Noon Pacific Time
HiTec HS-425BB Deluxe Ball Bearing Standard Servo
$17.87
Unit price /
Unavailable
Product Contents:

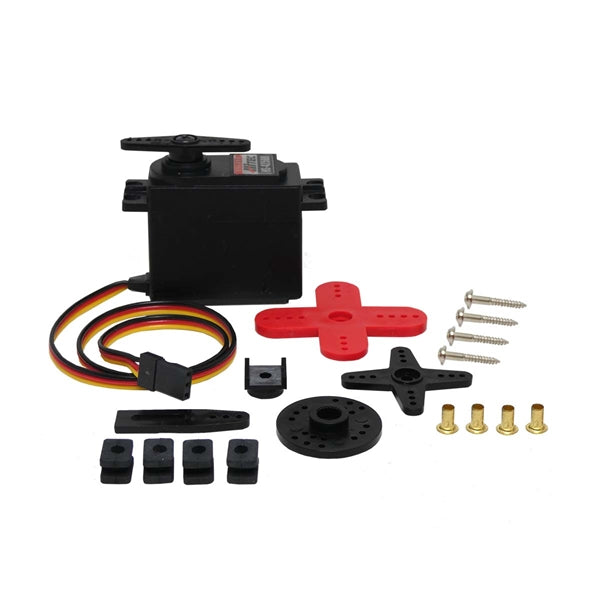

- 1 - HiTec HS-425BB Deluxe Ball Bearing Standard Servo
Performance Specifications:
Physical Specifications:
| Operating Voltage Range | 4.8V ~ 6V | |
| Speed (Second @ 60°) | 0.21 ~ 0.16 | |
| Maximum Torque Range | 46 ~ 57 oz / in (3.3 ~ 4.1 kg / cm) | |
| Current Draw at Idle | 8 mA | |
| No Load Operating Current Draw | 150 mA | |
| Stall Current Draw | 800 mA | |
| Dead Band Width | 8 µs | |
Physical Specifications:
| Dimensions | 1.59 x 0.77 x 1.44 in (40.6 x 19.8 x 36.6 mm) | |
| Weight | 1.6 oz (45.5 g) | |
| Circuit Type | HT7003 Analog SMT | |
| Motor Type | 3 Pole Metal Brush Ferrite | |
| Gear Material | Nylon | |
| Bearing Type | Dual Ball Bearing | |
| Output Shaft (type / diameter in mm) | Standard 24 | |
| Case Material | Plastic | |
| Dust / Water Resistance | N/A | |
| Connector Gauge (AWG) / Strand Count | 25/40 | |
| Cable Length | 11.81 in (300 mm) | |
Resources
- Arduino "Knob" Tutorial: control the shaft of a servo motor by turning a potentiometer
- Arduino "Sweep" Tutorial: sweeps the shaft of a servo motor back and forth
Connector Pinout:
