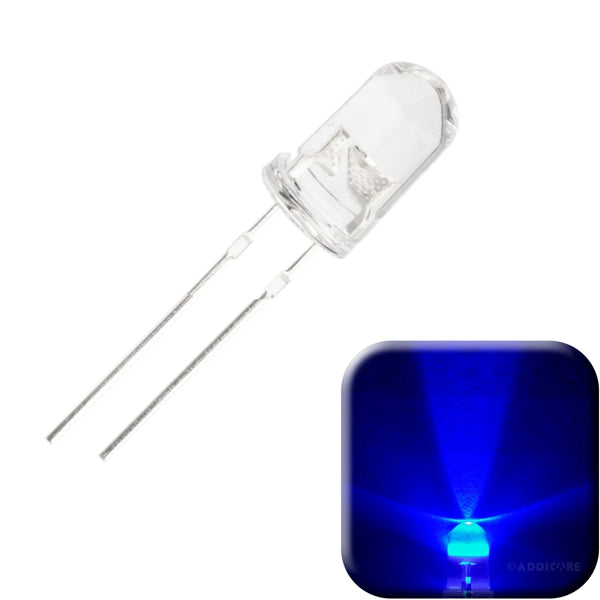

Blue 5mm LED

Specifications

• Color: Blue

• Color Wavelength: 460 - 470nm

• Voltage: 3.0 - 3.2V

• Continuous Forward Current: 20mA

• Max Forward Current: 30mA

• Intensity: 3000 - 4000 mcd

• Lens: Clear

• View angle: 30 degrees

• Recommended resistors to use with these LEDs when using the given supply voltage:

  • 3.3V Supply: 15 Ohm Resistor

  • 5V Supply: 100 Ohm Resistor

  • 12V Supply: 470 Ohm Resistor

• Shorter pin is the cathode (negative)

• Lens Diameter: 5mm

• Pin length: 17mm (0.67in) and 15.5mm (0.61in)

• Replacement for Blue LEDs in LED AddiKit

Resources

• Datasheet
