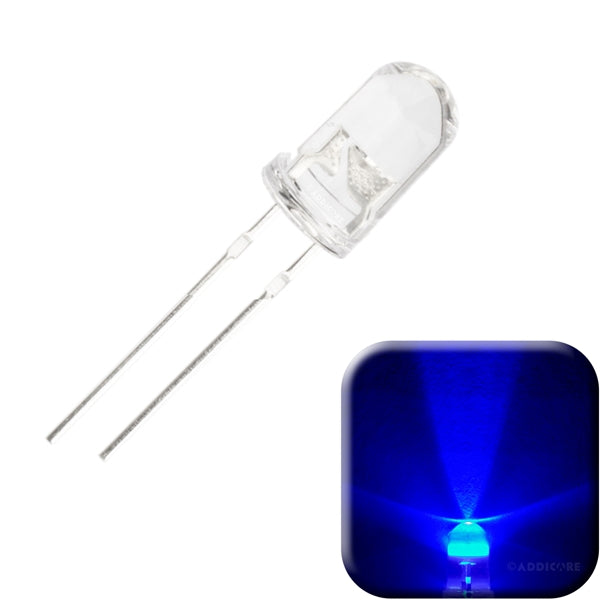

Blue 5mm LED
$0.13
Unit price /
Unavailable
Click the "View Quantity Discounts" button below the "add to cart" button to see discounts on multiples of this item.
Product Contents:
- 1 piece - Blue 5mm LED
Specifications:
- Color: Blue
- Color Wavelength: 460 - 470nm
- Voltage: 3.0 - 3.2V
- Continuous Forward Current: 20mA
- Max Forward Current: 30mA
- Intensity: 3000 - 4000 mcd
- Lense: Clear
- View angle: 30 degrees
- Recommended resistors to use with these LEDs when using the given supply voltage:
- 3.3V Supply: 15 Ohm Resistor
- 5V Supply: 100 Ohm Resistor
- 12V Supply: 470 Ohm Resistor
- Shorter pin is the cathode (negative)
- Lense Diameter: 5mm
- Pin length: 17mm (0.67in) and 15.5mm (0.61in)
- Replacement for Blue LEDs in LED AddiKit
