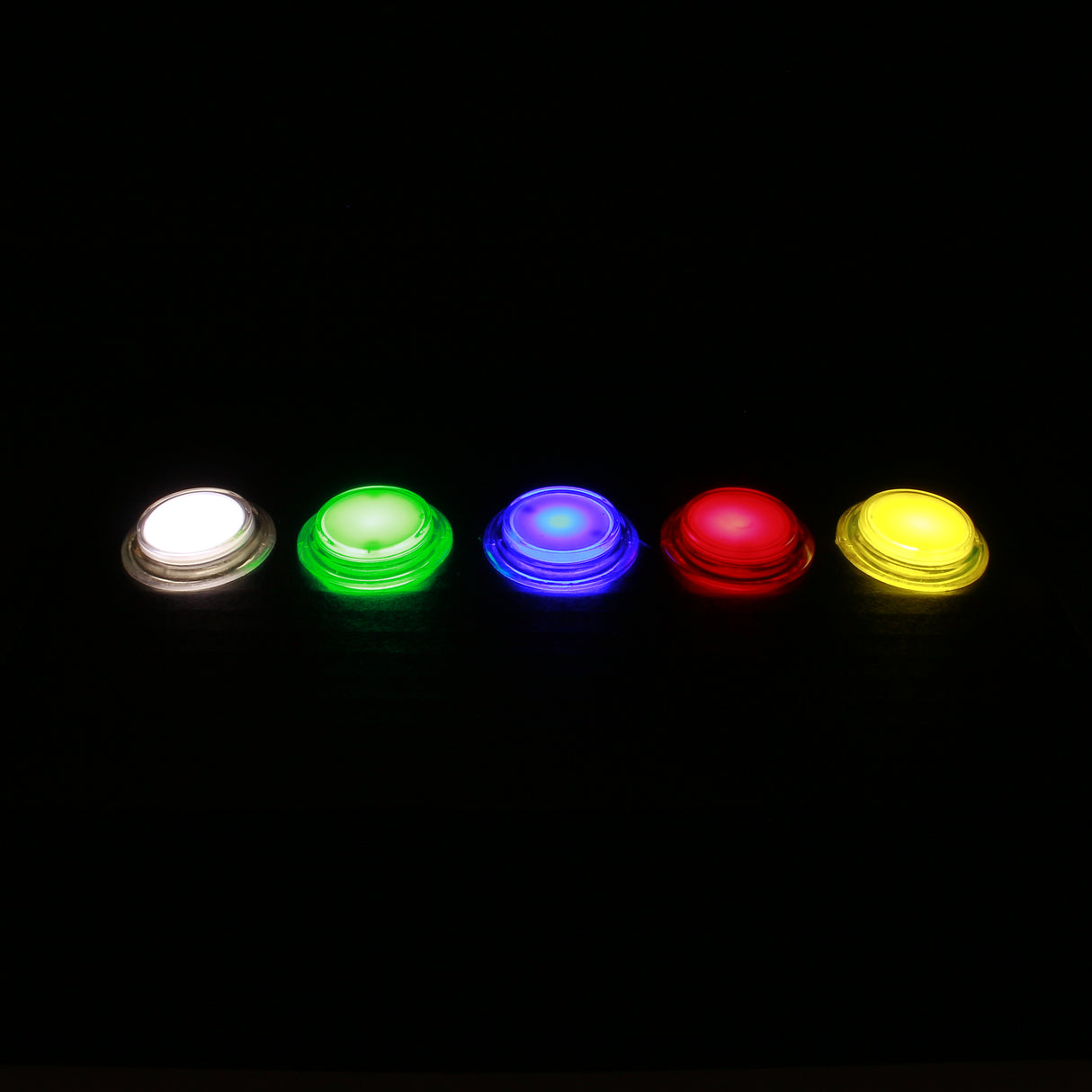

LED Illuminated Arcade Push Button

These illuminated arcade buttons are great for gaming projects or for projects that would look better with an illuminated button. Simply twist the switch mechanism to remove. Unscrew the black plastic mounting nut and remove the black plastic washer then install the plastic button body into a hole of a diameter slightly larger than 0.94" (24mm) and tighten the mounting nut. Then replace the switch mechanism and connect your wires.

Specifications

• Switch contact type is SPST normally open momentary switch

• Switch action type is momentary switch

• Internal resistor attached to LED allows you to illuminate the button using 5V to 12V (nominal brightness with 12V)

• Optimal brightness achieved with 12V

• Internal resistor can be de-soldered and replaced with a different resistor to achieve optimal brightness at lower voltages

• Bottom shaft diameter: 0.95in (24mm)

• Top diameter: 1.32in (33.5mm)

Resource Links

• Addicore Illuminated Arcade Button Example Arduino Code
