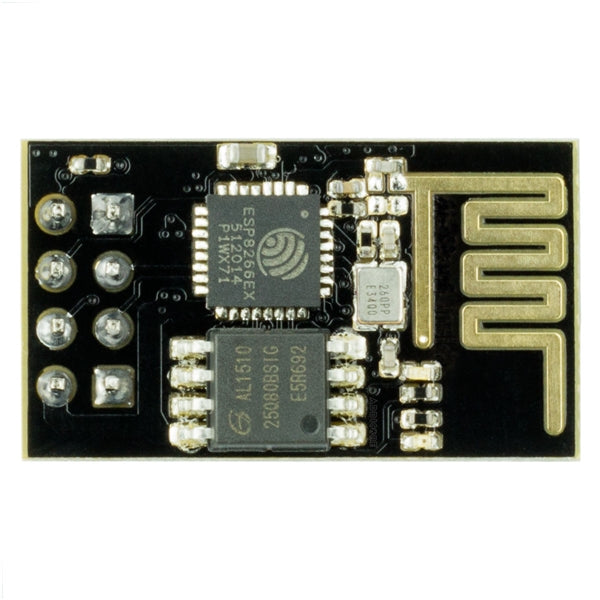

ESP8266 ESP-01 WiFi Wireless Tranceiver Module 1MB Flash

• These modules include 1MB (8Mbit) of flash memory, twice the size of the older blue colored ESP-01 module

• The ESP8266 Serial/UART to Wi-Fi module is a great way to connect your Arduino or other microcontroller projects to a Wi-Fi network

• Create your next internet of things (IOT) project with affordable network connectivity by implementing this module into your design

• The module has the ability to run independent of a host controller

• The eight-pin header includes two GPIO pins that allow for direct connection of the module to sensors, peripherals, or host controller

  • Check out our ESP8266 breadboard adapter to use your ESP8266 module with a breadboard

• The ESP8266 has 3.6V tolerant I/Os so you will need a logic level converter to connect it with higher voltage devices such as Arduino

• The ESP8266 requires 3.3V power so you may need a 3.3V voltage regulator to provide the correct voltage, depending on your setup

Specifications

• 802.11 b/g/n

• Serial/UART baud rate: 115200 bps

• Integrated TCP/IP protocol stack

• Input power: 3.3V (see "Recommended Accessories" below for 3.3V power options)

• I/O voltage tolerance: 3.6V Max (see "Recommended
• Accessories" below for level converters to connect to higher voltage devices (i.e. Arduino) )

• Regular operation current draw: ~70mA

• Peak operating current draw: ~300mA

• Power down leakage current: <10µA

• +19.5dBm output in 802.11b mode

• Flash Memory Size: 1MB (8Mbit)

• WiFi security modes: WPA, WPA2

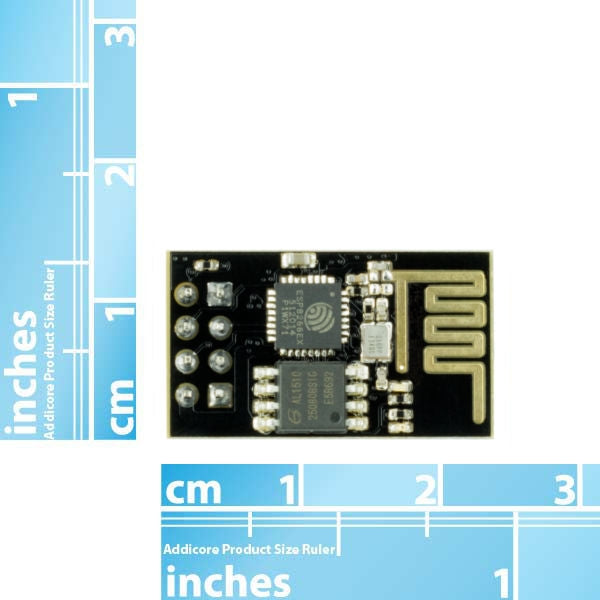

• Module's dimensions: 24.75mm x 14.5mm (0.974" x 0.571")

Resources

• ESP8266 Datasheet

• ESP8266 Technical Reference

• ESP8266 AT Instruction Set

• ESP8266 AT Command Examples

• Great information and support community

• Kolban’s book on the ESP8266

• ESP8266 Weather Display Tutorial (from Zeflo)

• ESP8266 with Raspberry Pi (by Razvan Dubau)

Pinout
