Note: This board is a design from early 2001. We didn't expect to be selling these again, but we came across a full box deep in storage. While the CompactFlash interface is a bit dated, this board is still a great way to experiment with the Microchip PIC16F877

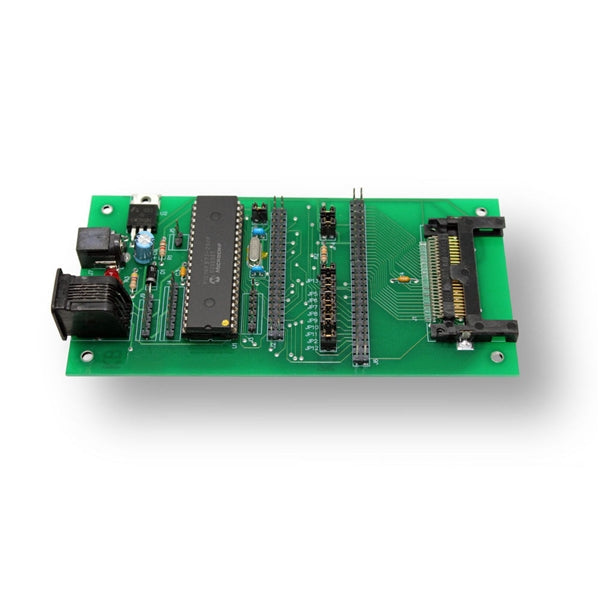

The CompactFlash Development Board provides an interface from a standard CompactFlash card to a Microchip PIC16F877 microcontroller.
The kit also includes a standard 40 pin IDE header which allows access to the CompactFlash card through an IDE bus.
Product Contents:
- 1 CompactFlash Development Board with Microchip PIC16F877
Features:
- 2x25 Header to access all of the CompactFlash card pins
- All extra PIC pins brought out to headers for additional access from PIC
- Standard PIC ICD interface (6 Pin modular jack)
- Power device using 7-9V power adapter (not included)
