Boffintronics  |  SKU: AD495

Boffintronics RoboBoffin Mini Controller

Shipping calculated at checkout.


Ships Same Day if Ordered Before Noon Pacific Time

Planning on using iOS to connect to your RoboBoffin Mini Controller? Read our forum post for additional information on how to connect

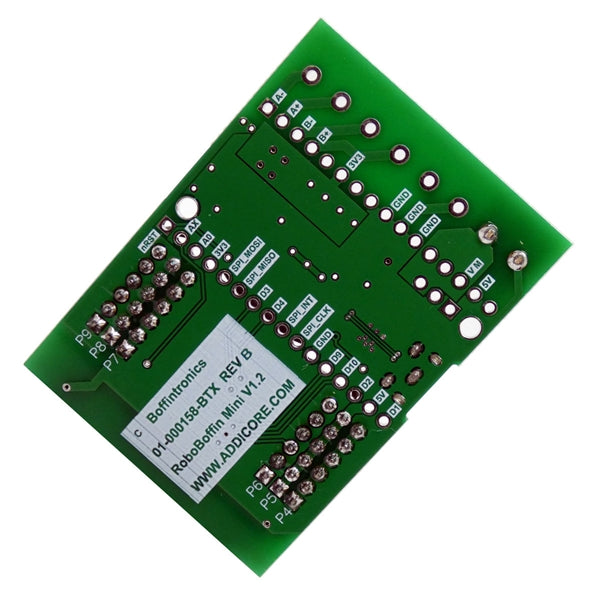

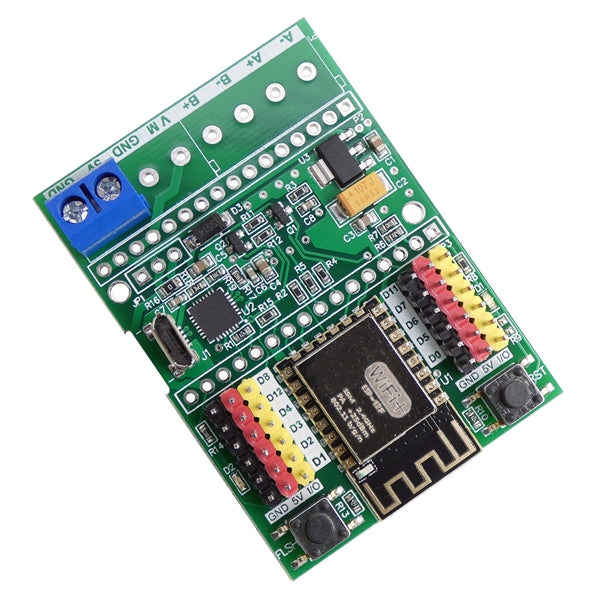

This is the custom designed Boffintronics RoboBoffin Mini control board used in the Cardboard Sumo Bot Addikit. It is based on the ESP8266 ESP-12 module and is compatible with the Arduino IDE and with NodeMCU.

The board includes an on-board USB Micro connector and USB to serial (UART) converter, making it easy to power and program the board by simply connecting it to your computer with a USB Micro cable.

Included are 12 headers set up for driving servos (5V, signal, and ground). Additional signals provided via P2 and P3.

Each board will come with the Cardboard Sumo Bot Driving software already installed. You can easily reprogram with your own code.

Product Contents:

  • 1 — Boffintronics RoboBoffin Mini

Microcontroller ESP8266
USB to Serial Converter SiLabs CP2102
Digital I/O Pins 11 (see note 1 below)
Analog Input Pins 1
Flash Memory 4MB
Board Dimensions
Length 60.1 mm (2.36")
Width 43.2 mm (1.7")
Height 15 mm (0.29")
Note 1: All I/O pins have interrupt, PWM, I2C, and one-wire capability, except for D0
