Addicore  |  SKU: AD224

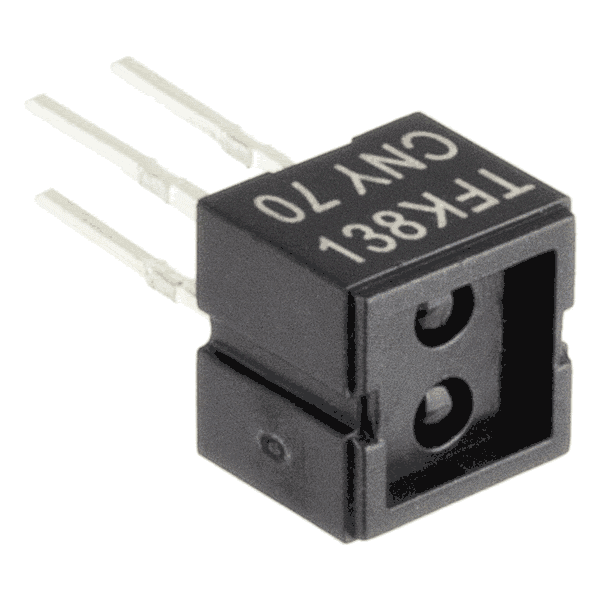

Reflective Optical Sensor CNY70

Shipping calculated at checkout.


Ships Same Day if Ordered Before Noon Pacific Time

The CNY70 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package with a daylight blocking filter.

These work great as close-range proximity sensors, tachometers, or line following sensors.

Product Contents:

  • 1 — CNY70 Reflective Optical Sensor

Emitter Wavelength 950nm
Forward Current (Max) 50mA
Forward Voltage 1.25-1.6V
Power Dissipation 100mW
Detector Type Phototransistor
Filter Daylight Blocking
Collector Current (Max) 50mA
Power Dissipation 100mW
Dimensions (Excluding Pins)
Length 7mm (0.3")
Width 7mm (0.3")
Height 6mm (0.24")
WEIGHT 0.4g (0.02oz)
Top View

CNY70 Top View Diagram

CNY70 Pinout Diagram
