HMC5883L Triple-Axis Magnetometer Compass Module
HMC5883L Triple-Axis Magnetometer Compass Module



Alternative Views:
Price: $5.38

Quantity in Stock:( Out of Stock )

Availability: Ships same day*
Product Code: AD306
Qty:

Info


The HMC5883L is a triple-axis magnetometer compass, which uses I2C for communication.

Compass heading accuracy of 1° to 2°, provided by internal 12-bit ADC (Analog-to-Digital Converter).

Includes on-board voltage regulator, allowing you to power the module with voltages between 3.3V and 6V.

The module includes on-board pull-up resistors on the I2C lines.

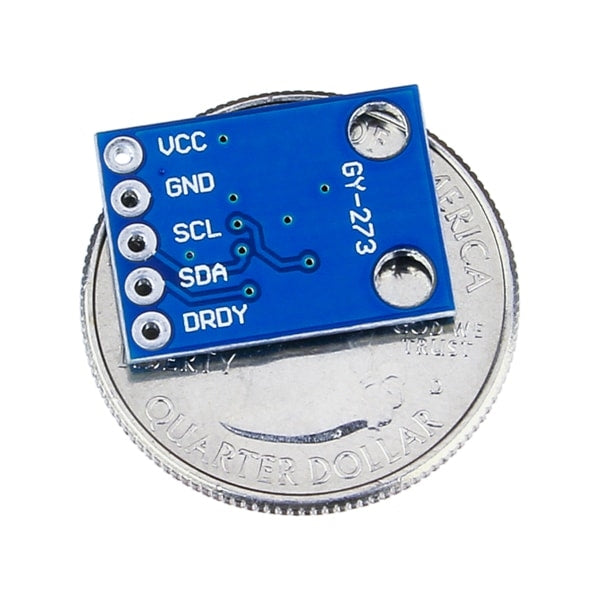

There is a data ready pin (pin DRDY) you can use to make your communication with the module more efficient; refer to the datasheet below for details.

Since this module has such great compass heading accuracy, it is great for giving your robot precise navigation abilities.

Product Contents:

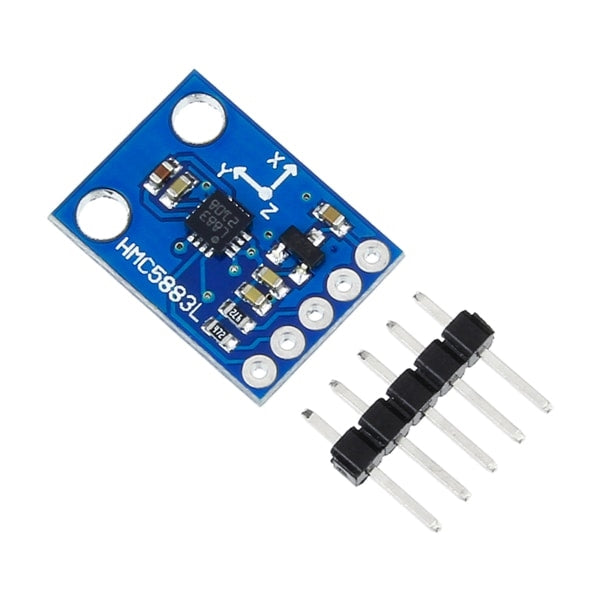

  • 1 — HMC5883L Triple-Axis Magnetometer Compass GY-273 Module
  • 1 — 1x5 pin male header
Specifications:
Supply Voltage VCC 3.3 to 6 V
Heading Accuracy 1° to 2°
Magnetic Field Range -8 to +8 Gauss
I2C Address 0x1E (7-bit address)
Max Data Rate 160 Hz
Digital Voltage Level 3.3V
Dimensions (excluding pins)
Length 18.2mm (0.717")
Width 13.3mm (0.524")
Height 2.2mm (0.087")
Weight 0.95g (0.034oz)
Resources:

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 2 Write a review

  0 of 0 people found the following review helpful:

5 of 5 Works! January 19, 2017
By: Aaron Norris from San Jose, CA
This little module gives my robot a good sense of direction. In conjunction with the Ultrasonic sensors that Addicore sells I can navigate a small maze with my robot.

Was this review helpful?

  0 of 0 people found the following review helpful:

5 of 5 I'm gonna use this with my GPS. December 27, 2016
By: Brian C. O'Rourke from WAYNESBORO, VA United States
Addicore is my new place to look for inexpensive electronic components.  I ordered and my stuff arrived  in no time and I got free shipping with my purchase in excess of $25.
