Addicore  |  SKU: AD477

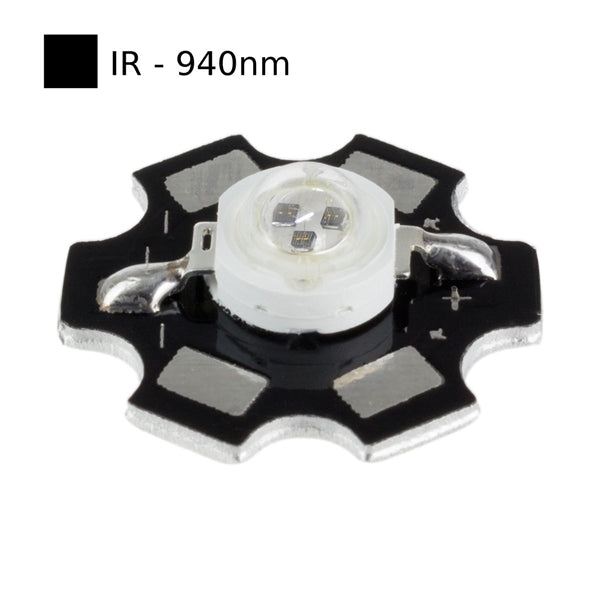

3W IR LED (940nm) on Star Board Heatsink

$3.99
Shipping calculated at checkout.


Delivery

Ships Same Day if Ordered Before Noon Pacific Time

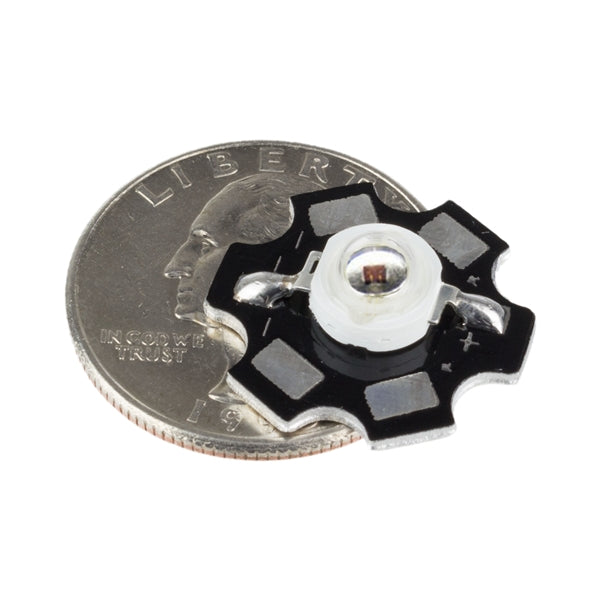

3W High intensity IR LED (940nm) module mounted to star style aluminum heat sink. These are the same LEDs found in many high intensity LED flashlights and lanterns.

Solder your connection wires to the silver rectangles marked with "+" signs for positive and "-" signs for negative.

NOTE: The star heat sink on this LED cannot fully dissipate a full 3W of heat. Therefore to drive this LED at it's highest power for extended periods of time you will need to add additional heat sinking. We recommend our 3W LED Heatsink.

Product Contents:

  • 1 — 3W IR LED (940nm) on aluminum star board heatsink
Specifications:

Wave Length 940nm
DC Forward Voltage 1.5 - 1.7V
DC Forward Current Maximum 750mA
Beam Angle 120°
Dimensions

All dimension units are millimeters (mm)

3W LED and Star Heatsink Dimensions
